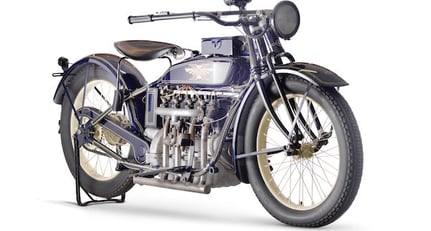

c.1923 Henderson 1,301cc Deluxe Four Engine no. B3811
* The most famous of the American fours * 100mph Deluxe model * Restored condition
One of the most charismatic names in American motorcycling history, Henderson produced nothing but four-cylinder motorcycles in the course of its 19-year existence. Founded by Tom and William Henderson in Detroit in 1912, the firm passed into the control of Chicago-based cycle maker Ignaz Schwinn, owner of Excelsior, in 1917. Schwinn shifted production from Detroit to the Excelsior factory in Chicago and the Hendersons soon moved on. Tom left the industry but William went on to found the Ace motorcycle company - later taken over by Indian - and thereby had a hand in the design of all the major American-built fours.
Although early models featured an unusually lengthy frame extending well forward of the engine, the Henderson, like the contemporary Indian and Harley-Davidson, was an advanced design for its day. Displacing 965cc initially, the air-cooled cylinders were arranged longitudinally in the frame and employed mechanically operated 'F-head' (inlet-over-exhaust) valve gear. There was single-gear transmission but the Henderson outclassed its rivals for convenience by having a clutch and a hand-crank starter instead of pedals. A shorter frame, folding kickstarter and three-speed sliding-gear transmission were all Henderson features by 1917.
After the take-over, Schwinn soon abandoned the Henderson's original design, which was replaced by one drawn up by Henderson engineer Arthur O Lemon. Introduced for 1920, the all-new Excelsior-built Henderson Model K boasted a 1,301cc sidevalve engine equipped with forced lubrication, a twin-downtube frame, strengthened front fork and enclosed rear chain. Modifications to the Deluxe (introduced for 1922) mainly concentrated on improvements to the gearbox. Top speed was a guaranteed 80mph and with the optional alloy pistons installed a Deluxe could touch 100mph, an astonishing performance for the time and one matched by few contemporary cars.
Equipped with the three-speed gearbox first introduced for 1917, this well restored example of one of the most desirable of all American motorcycles is offered with an Automotoclub Storico Italiano certificate.
